Description

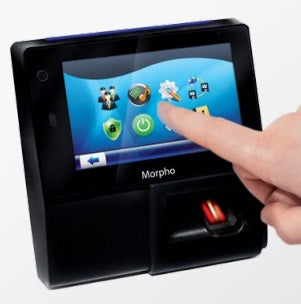

MORPHO MA SIGMA WR iClass Reader- Access Control and Time and Attendance station
Contact IDCW for availability: 02 9651 6000
The MorphoAccess MA Sigma WR iClass Reader features accurate fingerprint and Smart Card technology with additional anti-fraud features.
- iClass® contactless reader
- Face detection and picture logging
- Fake finger detection, Duress finger detection
- Fast 1:100 000 identification
- Banned/authorised user lists
- Exclusive optimisations for access control
- Accuracy maintained regardless of number of users
- 5"WVGA colour touchscreen
- Easy on-device administration
- Comprehensive customisation capabilities
- Time & Attendance Ready
- Touchscreen Time Clock
- Up to 1 Million logs storage capacity
- Real-time employee notifications
- Job Code management
- Videophone function
- Built-in camera, speaker and microphone
- Standard IP-based video and audio interface
Specifications:
CPU: ARM® Cortex™-A9 core 1GHz
• Linux Operating System
• 5” WVGA color Touchscreen,
• FBI PIV IQS certified optical fingerprint sensor
• Network/Communication: Ethernet, RS485, RS422, USB, Wi-Fi* and 3G* options *Optional extra
• Internal storage capacity: 512MB Flash, 512MB RAM + 8GB microSD Card
- 5000 user records (2 fingers + 1 duress each), extendable up to 100,000 with licenses *Optional Extra
- 250,000 IDs in authorized user list
- 1 Million transaction logs
- 10,000 face picture logs
Door Relay, 3 GPI (including Door
monitoring), 3 GPO
• Power supply: 12V-24V DC
Power over Ethernet (PoE), compatible
with PoE+ switches
• Tamper switches
• Ingress Protection: IP65
• Compact with slim profile:
HxWxD = 153x151x58,5 mm (6x5,9x2,3
inches)
• Ultra-light: about 470 grams (depends on
variant)
• EMC/Safety standards:
- CE, CB, FCC, BIS
- UL294 (for indoor use only)
• RoHS, REACh and WEEE compliant
