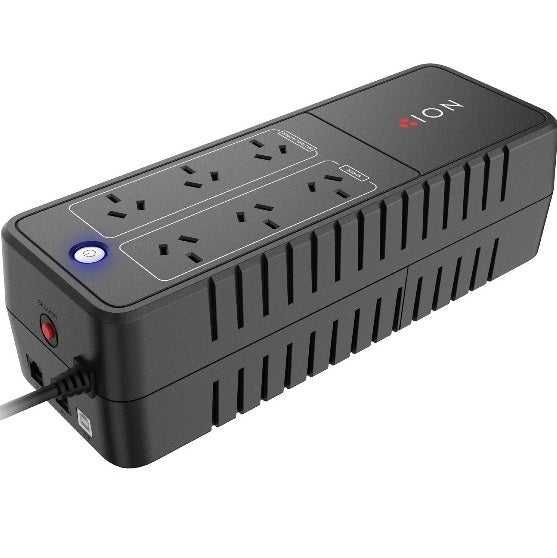

ION UPS F10 850VA Power Board
The ION F10 850VA Power Board UPS is a compact, cost-effective power protection solution designed to safeguard essential equipment from power interruptions and surges. Featuring six Australian 3-pin outlets — three with surge protection and three with both battery backup and surge protection — the F10 provides reliable coverage for multiple devices while reducing the risk of data loss, corruption and costly downtime.
Ideal for Point of Sale (POS) systems, home security equipment, small office and home office PCs, storage devices, routers, modems, home theatre setups and gaming equipment, the ION F10 delivers dependable performance in a convenient power board design.
Built with fanless technology for quiet operation, the F10 supports APFC equipment and includes intelligent features such as auto-restart and auto-charge functionality, cold start capability in battery mode, and an intelligent LED status indicator. A USB communication port and RJ-11/RJ-45 surge protection provide additional connectivity and protection options. The unit is also wall mountable for flexible installation.
Features

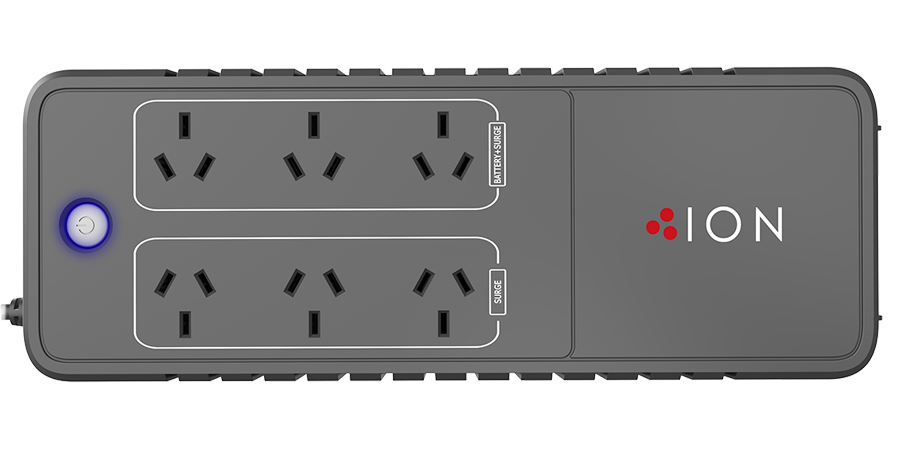

Six Australian 3-pin outlets (3 x Surge & 3 x Battery Back Up)
Compact, space-saving design
Fanless technology for quiet operation
Compatible with APFC power supplies
Automatic restart and auto-charge functionality
Cold start capability in battery mode
Intelligent LED status indicator

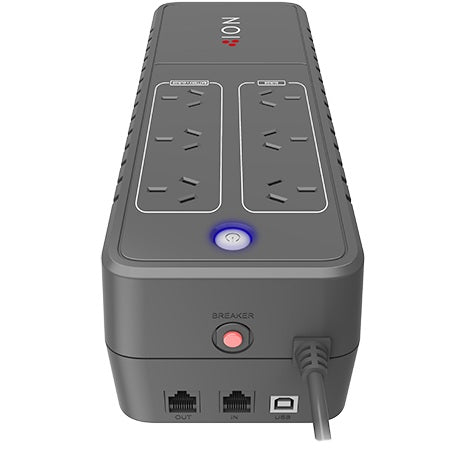

USB communication port with RJ-11/RJ-45 surge protection
Wall-mountable for flexible installation
2 Year Warranty
Specifications
Output Power Capacity 490W/850VA
Max Configurable Power 490W/850VA
Nominal Voltage (Batt.mode) 220-240Vac
Frequency (Batt.mode) 50/601% Hz
Waveform (Batt.mode) Simulated Sinewave
THDv 3% @ linear load, 5%@non-linear load
Transfer Time 4ms typical
Overload Protection Circuit breaker or inner firmware protection
Nominal Input Voltage 220-240Vac
Voltage Range 180-270Vac
Frequency 50/60Hz (Auto sensing)
Battery Voltage 12V
Battery Type 5.6AH
Total Battery Quantity 1
Recharge Time (to 90%) 8H
Charger Current 0.7A
6 x Australian 3 pin outlets 10Amp
1 unit
