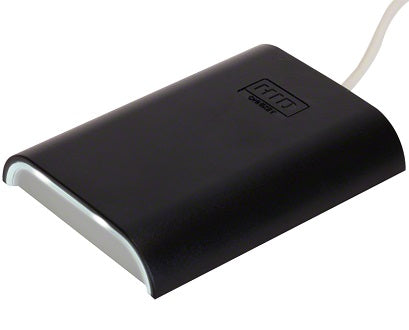

HID Global’s OMNIKEY® 5427CK Bluetooth Dual Frequency Reader ( Low Frequency - 125kHz Proximity cards and high frequency - 13.56mHz Mifare Cards)
HID Global’s OMNIKEY® Bluetooth 5427CK has a small footprint and functions in virtually any PC environment, opening new market opportunities for system integrators. Independent of operating system, the reader includes CCID and Keyboard Wedge Interface.
The OMNIKEY® 5427 CK G2 with Bluetooth interface allows customers to leverage their mobile access credentials to access computer, network or cloud by using their mobile phone
The reader also supports low (125kHz Proximity cards) and high frequency (13.56mHz Mifare Cards) technologies within a single device to provide organizations with a seamless migration path and enabling mixed credential technology environments.
Additionally, the reader includes an integrated, easy-to-use web based management tool that enables intuitive, browser-based configuration independent from the operating system.
Supports mobile access – with Bluetooth interface to leverage HID mobile phone credential to access computer, network, data or cloud
Security – Enhanced system security supporting low and high frequency credentials including HID Prox®, MIFARE® Classic, MIFARE DESFire® EV1, iCLASS®, iCLASS SE® and SEOS®
Ease of use – Straightforward utilization of existing access control credentials for PC login in both CCID and Key Wedge operation modes.
CCID Support – Eliminates the need to install drivers on standard operating systems.
Keyboard Wedge support – Retrieves data from a card and presents the information directly to any application by emulating keyboard strokes.
Flexibility – Numerous accessories and mounting options are available
Specifications
CONTACTLESS SMART CARD INTERFACE
High Frequency
- iCLASS, iCLASS SE, iCLASS Seos, MIFARE Classic1K/4K, MIFARE Ultralight, MIFARE Ultralight C, MIFARE Plus, MIFARE DESFire 0.6, MIFARE DESFIre EV1
- ISO 14443 A with 848 Kbps transmission rate (depending on card)
- ISO 15693 with 26 Kbps transmission rate (depending on card)
Low Frequency
- HID PROX
- EM4100, EM4102, EM4200, EM4305, EM4450 (Standard Mode Only)
Supported APIs
- PC/SC (ready for 2.01, in CCID mode)
- Human Interface Device (in Keyboard Wedge Mode)
Driver Support
- Compliant with native Human Interface Drivers (in Keyboard Wedge Mode)
- Compliant with native CCID drivers (in CCID mode)
- HID proprietary drivers available for Windows® XP, Vista, 7, 2008, 2008 R2 (all 32 bit/64 bit),Linux®, operating systems (32/64bit): Debian 6.0, Fedora 15, OpenSUSE 11.4 , Ubuntu 11.04, Mac® OS X 10.6/10.7 (in preparation)
Host Interface
- USB 2.0 (also compliant with USB 1.1)
- Transmission speed 12 Mbps (USB 2.0 full speed)
- Bluetooth
Hardware Specifications
- Dimensions: 2.6” x 2.2” x 0.35” (66 mm x 55 mm x 9 mm)
- Weight: Approx. 14 g (0.49oz)
- Power supply: Bus powered
- Operating temperature: 0° - 50° C (32° - 122° F)
- Operating humidity: 10-90% rRelative Humidity
- Storage temperature: 20° - 65° C (-4° - 149° F)
- Status indicators: Dual color LED (green=ready, red=busy)
- Buzzer (programmable)
- Connector / cable Micro USB connector, cable not included
Safety / Environmental
- Compliant to ROHS, WEEE, IEC 60950-1
- Warranty Two year manufacturer's warranty
