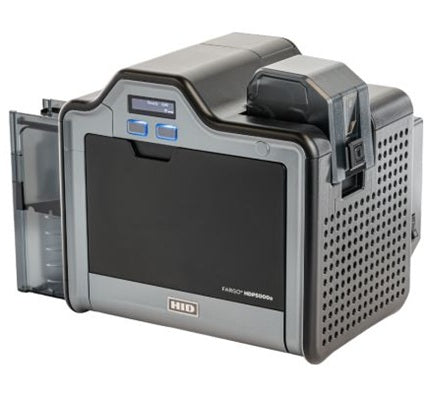

HID® FARGO® HDP5000e Single Sided ID Card Printer
The new HDP5000e - the latest release from HID FARGO is here...
- Thermal Transfer Printer
- Single Sided Printer
- Prints onto Mifare & Proximity Cards
- 4 Year RTB Warranty
- "Over the Edge" Printing
Ribbons:
HID FARGO 84511 YMCK Colour Ribbon
HID Fargo 84500 Retransfer Film
The new HID FARGO HDP5000e ID card printer from HID FARGO is the latest in high-definition printing solutions and is the ideal option for printing onto Proximity cards or Smartcards with embedded electronic chips. . Developed over seven generations of retransfer technology spanning 25 years, the HID® FARGO® HDP5000e sets new standards for reliability, usability, security, and print quality.
The new and improved HDP5000e delivers faster, more precise printing with enhanced card throughput, Ethernet speeds, and advanced memory for efficient high-volume handling. Reinforced connections and streamlined modules prevent common issues like card jams and misalignment. The SmartScreen OLED interface and built-in diagnostic tools simplify setup, maintenance, and troubleshooting, while tool-free access allows easy maintenance and resin scramble technology protects printed data, and AES-256 encryption, UV printing, and optional locks offer added security.
Specifications
HDP Dye-Sublimation / Resin Thermal Transfer
Resolution: 300 dpi (11.8 dots/mm)
Colours: Up to 16.7 million / 256 shades per pixel
Print Speed (Batch Mode): Up to 27 seconds per card (YMCK with transfer)/ 133 cards per hour (YMCK with transfer) & Up to 33 seconds per card/ 109 cards per hour (YMCKK** with transfer)
Accepted Standard Card Sizes: CR-80 (3.370˝ L x 2.125˝ W / 85.6 mm L x 54 mm W)
Accepted Card Thickness: .030˝ (30 mil) to .050˝ (50 mil) / .762 mm to 1.27 mm
Input Card Cartridge Capacity: 100 cards (.030” / .762mm)
Optional dual input hopper* or 200-card input hopper available for a total input capacity of 200 cards
Output Hopper Card Capacity: 200 cards (.030˝ / .762 mm)
Software Drivers: Windows® 10 / 11 / Server 2016 / Server 2019 / Server 2022
Print Area: Over-the-edge on CR-80 cards
Warranty: Printer - Four years RTB Printhead – Lifetime, unlimited card passes
Downloads
FARGO HDP5000e Printer Brochure
FARGO HDP5000e Printer Specification Sheet
