Description

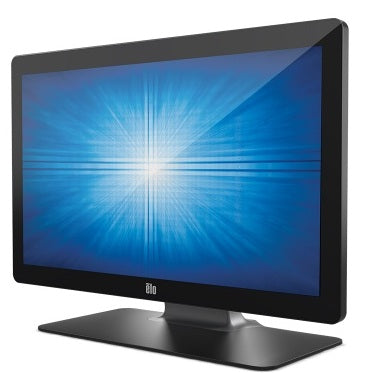

ELO 2202L 22-inch wide LCD Desktop, Desktop, Full HD, Projected Capacitive 10-touch, USB Controller, Clear, Zero-bezel, VGA and HDMI video interface, Black
The ELO 02-Series 2202L is a 22-inch widescreen LED touchscreen monitor featuring a seamless zero-bezel, edge-to-edge glass design with Elo’s advanced PCAP technology. Built with a sleek, retail-hardened design, it is ideal for use in point-of-sale, point-of-information, signage, hospitality, and education environments.
With its compact form factor and clean aesthetics, the 2202L integrates easily into any setting. The touchscreen supports versatile interaction, working seamlessly with finger, glove, or stylus input.
Specifications
LCD Technology: Active matrix TFT LCD
Touch Technology: TouchPro PCAP
Aspect Ratio: 16:9
Active Touch area: 467.06 mm x 267.78 mm
Speakers: 2 x 2W internal speakers
I/O Ports: VGA, HDMI, Headphone Jack, DC Jack, USB Type B, USB 2.0 Type A, 4 x Micro USB
Peripheral Ports: 4 x Micro USB side ports (Top, Bottom, Left, Right)
Video: VGA (VGA DB-15 Male connecter cable included); HDMI (HDMI cable included); Input Video Horizontal Sync frequency range: 30 – 82KHz
Input Video Vertical Sync (frame rate) frequency range: 50 - 75Hz
3 Year Warranty Return to Base
