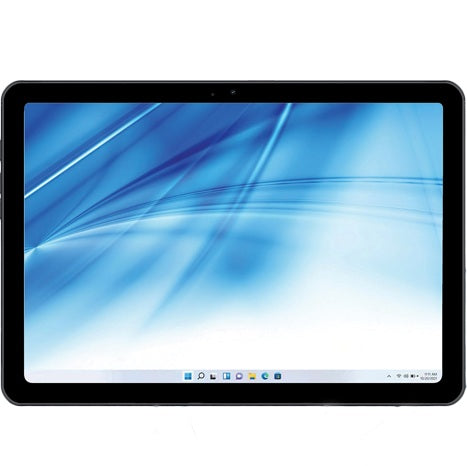

Element K10A Android Panel PC Touch Screen LCD

ElementSKU: M-TTETK10A001-SK

Sale price$999.50

Element K10A Android Touch Screen  RK3288 2/16 10.1/P POE/NFC/WM Black with Android 8.1 (No Stand)

The Element K10A is a 10.1” Full Flat Touch Screen LCD with 1280 x 800 resolution.  It has an Android Rockchip RK-3288, Quad-core Cortex-A17 up to 1.8GHz, 2GB RAM /16GB of Storage and 2MP Camera.  The Element K10A can be used to scan keycards or employee ID’s directly, making it an ideal access control solution. It can be used for an array of applications, including Reception Self-Check In and Self-Check Out and Self Service Terminals (Self Ordering). It can also act as Digital Signage Display / Information Display.

Since the Element K10A has screw-free adhesive tape and the Power over Ethernet (PoE), you can easily install Element K10A with only one single cable without damaging surfaces.  It has a slim and stylish design with Programmable colour LED Indicators.


Processor: Rockchip RK-3288, Quad-core Cortex-A17 up to 1.8GHz
GPU: Mail-T760 MP4
System Memory: 2GB DDR3
Storage Device: 16GB eMMC
Wi-Fi: 802.11 a/b/g/n, 1T1R
NFC / RFID: Optional
Touch LCD Display: 10.1 inch TFT LCD / 1280 x 800
Touch Screen: Projected Capacitive Touch, 10 Points
Brightness (Touch Type): 450 nits (No Touch), 382 nits (P-CAP)
Front Camera: Fixed Focus 2M Pixel Front Camera

I/O Port
USB Port: 1 x USB 2.0 Type A, 1 x USB 2.0 Type C (OTG support)
LAN Port: 1 x RJ45 Giga LAN, PoE (Power Over Ethernet) 48V/56V support
Video Port: 1 x HDMI
Power Input: 1 x DC in 12V/2A 2 pin (24W External Power Adaptor or PoE selectable)
SD Slot: 1 x Micro SD Slot (SDHC 2.0 support)

Speaker: 1 x 2W
Material: Plastic + Glass + SECC Metal
Housing Colour: Dark Gray
Wall mount bracket
Light Bar: 2 x Multi-Color LED Light Bar

OS: Android 8.1


Element K10A Touch Monitor Brochure
