CR80 Hi-Co HID UltraCard PVC Cards C-HD-81751 Pkt 100

IDCWonlineSKU: C-HD-81751

Sale price$46.00

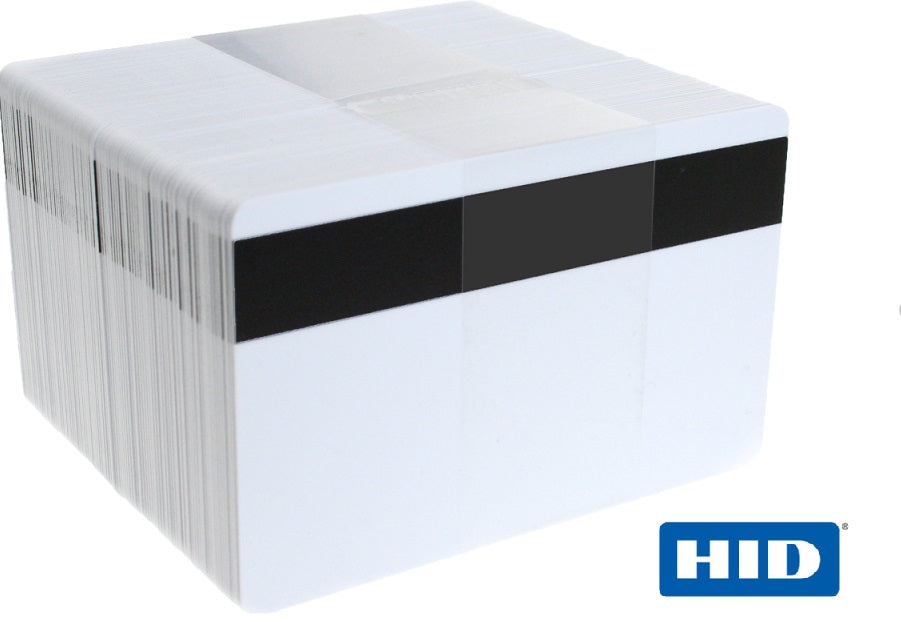

Hi-Co HID UltraCard Mag Stripe Cards - High Coercivity Magnetic Stripe PVC Plastic White Cards - CR80 Hi-Co Mag - Pack of 100

High Coercivity CR80 PVC White Credit card size (85.5mm x 54mm) PVC Magnetic Strip cards, 30 mil thickness.

Plain White HID UltraCard High Coercivity Magnetic Stripe Plastic Card  (2750 Oersted)

Encoding magnetic stripes
A magnetic stripe is the dark band/stripe which is featured on the reverse of a bank PVC card. The stripe is made up of tiny magnetic particles embedded in a resin and attached to the blank card.

During the encoding process, these particles are magnetized in a direction which is oriented either towards the North or the South Pole. Each character on the stripe is encoded with sets of 1s and 0s. The polarity of the magnetic particles is changed to reflect each of those bits. Changing the magnetization of each particle on the stripe helps encode the binary information that will eventually be decoded by an appropriate reader.

The coercitivity refers to the strength of a magnetic field required to edit data encoded on a magnetic stripe. There are two types of magnetic stripes with different levels of coercitivity:

The HiCo (High Coercitivity) magnetic stripes offer a higher level of security against potential damages from third-party magnetic fields
LoCo stripes (Low Coercitivity) are more sensitive to third-party magnetic fields

Packet: 100 Cards
