ACTAtek Stationary long range reader (High Sensitivity) ACTA-UHF-COMBO-D390

ACTAtek Stationary long range reader (High Sensitivity) MF-ACTA-UHF-D390

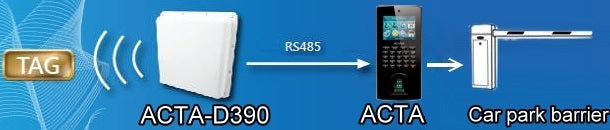

This high-performance, high-sensitivity UHF RFID reader is designed for easy installation and durability, offering superior signal coverage and read rates in any environment. Featuring an 11dBi broadside gain antenna and 24.9dBm RF modules, it is ideal for security control and can be integrated with applications and products like power locks.

Features:

Maximum power output is 24.9dBm (adjustable)
Electronic tag compliant with EPC Gen (ISO18000-6C) standard
Supports antennas of 11dBi gain; has a read range of over 10 meters
Developed patented design to reduce EMI radiation
Supports data output via communication interfaces including RS485
Allowed to operate in long-range dense-reader mode, compatible with Gen 2 standard
Automatic matching of output impedance of the antenna impedance
Adopts a lookup table method to achieve frequency hopping spread spectrum

Use with:

ACTAtek UHF Reader Unit  / AMS Software / UHF Plastic Smart Cards /  SaaS / Network Switch
* Contact IDCW 02 9651 6000 for details

Specifications:

Operating Voltage:            12V
Antenna Gain:                  11 dbi
Antenna Connection:          50 ohm U.FL.
Transmitting Power:           24.9 dBm (Adjustable)
Communication:                RS485
Operating Frequency:         902-928 MHz
Supported Transponders:      EPC Gen2(ISO 18000-6C)
Modulation:                        PR-ASK,ASK
Current Consumption:         < 1A
Temperature Range Operating: -20C to +55C, Storage -20C to +85C
Receiving sensitivity:         -85 dBm
Reading range (Avg.):        > 15M
Dimension( L x W x H ):      413 x 348 x 38.6 mm
Relative Humidity:             5-90%
Ingress Protection:            IPX6
