Description

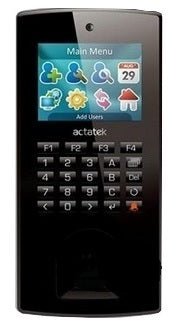

ACTAtek 3000 User Employee Time Clock with Mifare Smart Card Reader, Camera & Keypad PIN Access
- Mifare Smart Card Authentication
- PIN Authentication
- Camera
- Up to 3K Users
Advanced Time and Attendance System designed to support up to 3000 users, equipped with a Mifare Smart Card Reader, Keypad PIN access, and an integrated CMOS camera that captures a photo with each PIN-based authentication for added security and accountability.
This powerful, all-in-one solution enables businesses to efficiently control access to secure areas while seamlessly collecting, tracking, and managing employee attendance data. Ideal for medium to large organisations, it enhances workforce oversight, reduces the risk of buddy punching, and simplifies payroll processing by providing accurate and verifiable time records.
- ACTAtek Electronic Time Clocks can operate either standalone or as part of a network. It includes software which provides Time and Attendance data, with exportable reports on Staff Attendance.
- Use any web browser on your PC, laptop, and mobile phone to access and manage all the applications.
- With optional PoE (Power Over Ethernet) built-in, just a single CAT5-6 cable can deliver all the needs for the device as well as to the door strike
- Encrypted network communication (TLS1.3 with 256-bit encryption)
- User Friendly Keypad supports 4 Function keys to user defined functions, allowing you to track employee breaks, job codes and departmental movement.
- Inbuilt software provides Real Time update via your local area network or via the Web. All communication between the unit and the web is encrypted.
- Weatherproof Casing for external use - IP65 Waterproof rating
-
Low cost of purchase - simple plug-in device and no ongoing maintenance fees
- Embedded software, access using a web browser
- Real-time communications
- Works in Standalone or Network modes
- Easy to scale: you can install one today and more in the future. Simply plug and play on your network.
- IP 65 appraised, indoor and outdoor all-weather installation
- Software interface supports simple interface to most software applications
- 3,000 users
- Up to 75,000 event logs
- Three Modes of authentication
- Smart Card
- ID + PIN.
- Photo + ID
- 1 Year Warranty
Specs
| Description | Spec |
| Built-in Web and Database Server | Yes |
| Non-volatile memory | 4GB |
| Number of users | basic 3,000 users can be upgraded to 100,000+ |
| Max transaction records stored | 75,000 |
| Max photos stored | 500 |
| SNMP compliant | optional |
| Static IP address assignment | Yes |
| Dynamic IP address assignment (DHCP) | Yes |
| Backlit LCD Display | 2.8” 64K/256K colour TFT screen |
| Computer supported (with Internet Browser) | Mac OS, Windows 7 or above version/ PC /Unix Machine |
| Valid Characters for Employee ID | 0-9, A-C (max. 16 characters) |
| Authentication Time | <1 second |
| Database interface supports | ODBC/JDBC |
| Encryption | TLS 1.3 |
| Multilingual support | Yes (during warranty period) |
| Network interface | 1,000BT Ethernet (Built-in) GSM/GPRS*, Wi-Fi* (*optional extra) |
| Expansion | RS-232/RS-485 |
| Programming API | SOAP API |
| Report (TXT/CSV output format supported) | Yes |
| Remote Control (TCP/IP) | Yes |
| Operation Temperature | -20ºC-60ºC |
| Relay support | 1x Door strike 1 |
| Case (without built-in PoE module) | IP65-fluid ingress, dust, salt, fog protection |
| Safety Standard | CE, FCC, IP65(without built-in PoE) |
- Please allow 3-4 weeks for production/delivery
Optional Extras
• Onboard Wi-Fi Module
• Onboard SIP Intercom Module
• Onboard 4G/LTE Module
• Onboard PoE Module (IEEE 802.3af compliant)
• Third-Party Card Compatibility Patch (for ST, SX & SY models)
• Barcode Reader Patch (for external barcode or magnetic strip readers)
• UHF Long Range Reader Patch
• AMS Software for Networking
• Custom Logo Patch
- Contact IDCW 02 9651 6000 for options and pricing
