Description

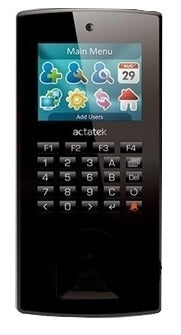

ACTAtek 1000 Users Employee Time Clock with Mifare Card Reader & Keypad PIN Access
- PIN Authentication
- Open Mifare Smart Card Reader
- Up to 1K Users
The Actatek Time and Attendance System supports up to 1,000 users and includes keypad PIN access with a Mifare smart card reader (Open Mifare unit). It provides secure access control and simplifies the efficient collection, tracking, and management of employee time and attendance.
- ACTAtek Electronic Time Clocks can operate either standalone or as part of a network and includes software which provides Time and Attendance data.
- The Keypad is User Friendly and supports 4 Function keys to user defined functions, allowing you to track employee attendance, job codes and departmental movement.
- With optional PoE (Power Over Ethernet) built-in, just a single CAT5-6 cable can deliver all the needs for the device as well as to the door strike
- Inbuilt software provides Real Time update via your local area network or via the Web. All communication between the unit and the web is encrypted.
- Weatherproof Casing for internal or external use - IP65 Waterproof rating
-
Low cost of purchase - simple plug-in device and no ongoing maintenance fees
- Embedded software, access using a web browser
- TLS 1.3 256-bit encrypted communications between units and browser
- Real-time communications
- System can be easily expanded by installing one today and more in the future.
- IP 65 appraised, indoor, and outdoor all-weather installation
- Software interface supports simple interface to most software applications
- 1,000 users
- Up to 75,000 event logs
-
3 Modes of Authentication
- Smart Card
- Keypad PIN
- Smart Card + PIN
- 1 Year Warranty
Specs
| Description | Spec |
| Built-in Web and Database Server | Yes |
| Non-volatile memory | 4GB |
| Number of users | basic 1,000 users can be upgraded to 100,000+ |
| Max transaction records stored | 75,000 |
| Max photos stored | 500 (with camera option) |
| SNMP compliant | optional |
| Static IP address assignment | Yes |
| Dynamic IP address assignment (DHCP) | Yes |
| Backlit LCD Display | 2.8” 64K/256K colour TFT screen |
| Computer supported (with Internet Browser) | Mac OS, Windows 7 or above version/ PC /Unix Machine |
| Valid Characters for Employee ID | 0-9, A-C (max. 16 characters) |
| Authentication Time | <1 second |
| Database interface supports | ODBC/JDBC |
| Encryption | TLS 1.3 |
| Multilingual support | Yes (during 1yr warranty) |
| Network interface | 1,000BT Ethernet (Built-in) GSM/GPRS*, Wi-Fi* (*optional extra) |
| Expansion | RS-232/RS-485 |
| Programming API | SOAP API |
| Report (TXT/CSV output format supported) | Yes |
| Remote Control (TCP/IP) | Yes |
| Operation Temperature | -20ºC-60ºC |
| Relay support | 1x Door strike *Option |
| Case (without built-in PoE module) | IP65-fluid ingress, dust, salt, fog protection |
| Safety Standard | CE, FCC, IP65(without built-in PoE) |
- Please allow 3-4 weeks for production/delivery
Optional Extras
• Onboard Wi-Fi Module
• Onboard SIP Intercom Module
• Onboard 4G/LTE Module
• Onboard PoE Module (IEEE 802.3af compliant)
• Third-Party Card Compatibility Patch (for ST, SX & SY models)
• Barcode Reader Patch (for external barcode or magnetic strip readers)
• UHF Long Range Reader Patch
• AMS Software for Networking
• Custom Logo Patch
- Contact IDCW 02 9651 6000 for options and pricing
